NANLITE Projector Mount for FM mount w/18-36° Zoom

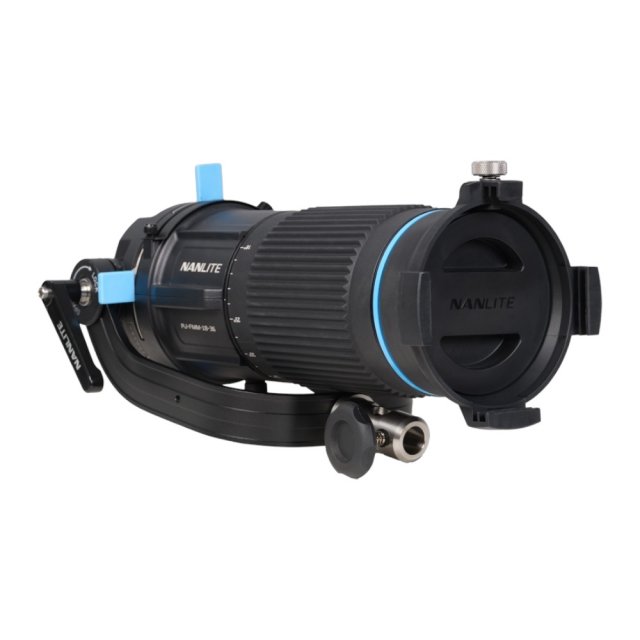

The Nanlite PJ-FMM-18-36 is a precision optical projection attachment designed for FM mount LED fixtures. It delivers clean, even light with excellent edge control, and features a zoom range from 18° to 36°—ideal for precise beam placement in studio or location work.

Nanlite FM Mount Projection Attachment 18°–36° (PJ-FMM-18-36)
Take full control of your light with the Nanlite FM Mount Projection Attachment 18°–36°. Designed for professionals, this precision optical modifier allows you to shape, focus, and direct your beam exactly where it´s needed—without compromising quality. Whether you´re working in film, broadcast, or studio environments, this attachment transforms compatible Nanlite FM mount fixtures intο a powerful spotlight with outstanding intensity and clarity.

Precision Light Control

With an adjustable zoom range from 18° to 36°, this projection lens gives you the flexibility to modify the beam size and focus without swapping lenses. It significantly boosts the fixture’s illuminance by up to 21×, offering crisp edges and even beam distribution thanks to a high-precision aspherical optical design.

Versatile and Durable

Crafted from rugged aluminum alloy with integrated shutters, 360° rotatable barrel, and support for both proprietary and M-size gobos, the PJ-FMM-18-36 is built for creative freedom and long-term durability. Its dedicated yoke ensures stable tilting and smooth operation, even when mounted on stands.

Key Features

Zoom range: 18°–36° with sharp edge control
360° rotatable lens barrel for flexible beam and gobo positioning
Up to 21× illuminance boost compared to bare fixture
Aspherical optics for uniform beam and minimal distortion
Built-in shutters and gel frame slot for fine beam shaping
Durable aluminum housing with support for junior or baby pin mounts
Compatible with optional 18-blade iris (PJ-FMM-AI)

What’s in the Box

FM Mount Projection Attachment 18°–36° ×1
Plastic Protective Cover (Front) ×1
Plastic Protective Cover (Back) ×1
Gobo (Pattern Inserts) ×4
Gobo Holder (Proprietary Size) ×1
M Size Gobo Holder ×1
Gel Frame ×1
Carrying Bag ×1
